SK Series Servo Motor Injection Machine

SK 530T Servo Motor Injection Molding Machine

Central Locking Structure;With 530T Make 560T Product
SK 530T Servo Motor Injection Molding Machine
SK 530T Servo Motor Injection Molding Machine
SK 530T Servo Motor Injection Molding Machine
SK 530T Servo Motor Injection Molding Machine
SK 530T Servo Motor Injection Molding Machine

Description

Reviews

Sunbun, Your best high speed high precision injection molding machine.


SK series. From 140T-2800T as the lastest generation injection molding machine of SUNBUN group featuring the mechanical Central Locking Structure. Different with 99.9% injection machine among the market



With 100% clamping force and longer open stroke which can be use smaller machine make bigger products. Material saving 2%-6% than normal machine enjoy solid reputation from all the clients.


China Sunbun 530T Injection Molding Machine Enjoy Germany Central Locking Technology Fixed Pump Hot sales New design thermoplastic injection molding machine. Benchtop Quality Power Saving Injection Moulding Machine. than Janpan ,Taiwan, Germany , European Plastic Molding Machine .  China International Component . Max 5 years long warrenty

● 100% Clamping Force Ratio, 10%-20% Higher Than Tradtional One


● Less Fins On The Finished Products


● 2%-6% Raw Material Saved From Tradtional One


● Effective Production For Mold, Mold Board and Pull Rod


Open Stroke 10%-20% Bigger Than Morlam One


● Less Deformation By CoolIng


Injection part
Item/type Unit SK530 / C3100 SK580 / C3400
Screw type   A B C D A B C D
Screw diameter mm707580  8575808590
Screw diame-ter ratio L/D23 21.5 22.521.3 23.4 22 20.7 29
Theoretical injection volume cm³1596 18322085
2353
1833208623552640
Injection volume (PVC) g14521667 189721421668189821432402
Maximum rate for inject-ion to air cm³/s393451513580399454513 591
Injection pressure MPa194169 149132 187 164 145 133
Injection stroke mm415415
Maximum injection speed mm/s10293
Maximal Rotational Speed of Screw r/min159181
Clamping part
Item/type UnitSK530 / C3100
SK580 / C3400
Clamp Tonnage KN53005800
Toggle stroke mm880850
Distance between tie bars mm×mm860x800865x805
Maximum mould height mm820850
Minimum mould height mm350350
Ejection stroke mm210210
Ejector force forward KN113113
Ejector force backard KN8282
Amount of die thimble Pcs 1+12 1+12
Others
Item/type UnitSK530 / C3100
SK580 / C3400
System pressure MPa 16 16
Motor power KW30+2230+30
Heater power KW31.8/33.532
Quantity of temperature-control zones   1+5 1+5
Bucket capacity kg100100
Oil tank capacity L750800
Boundary dimension(L×W×H) m8.1x2.2x2.68.8x2.2x2.6
Machine weight Ton2123
Side dimension of the molding board

INJECTION SYSTEM

  • The enhanced double-cylinder dual-extruding enjection structure will produce a lower back pressure in oil return during ejection. have a quicker injection speed and longer service life

  • The dual linear-guide , double displacement balanced stand can improve machine barrel accuracy

  • Precise screw design will dramatically improve the injection accuracy and effectively reduce the defective rate.  (38/42 Crmoal)

  • The optioncal pneumatic nozzle imported with orginal package has a flexible switch device and reliable seal

  • The cylinder with thicker wall and a high power heater can ensure a high plasticizing efficiency

HYDRAULIC SYSTEM

  • With international High Speed Storage motor and Hydraulic Components ensure fast , effcient and long life operation

  • Modualr design for High-Response oil circult and hydraulic valve plate Which have a large oil circule and free of damp effectively reduce pressure loss , speed up system response ability

  • Original germany oil pipe and seals avoid oil leak.

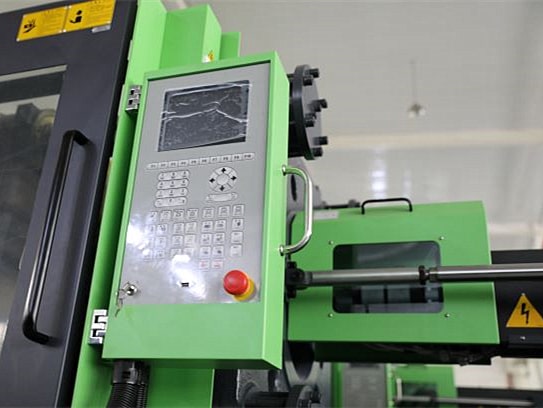

ELECTRONIC CONTROL

  • The whole electrionic control system is design for full electric and high speed injection molding machine

  • Apply Up-To-Date System,  New hardware design,  intelligent interactive interface ,  A CPU for fast arithmetic speed

  • Using EtherCAT/CAN  All-Date Communication technology Show clear iprovement in all technical indexes. Actsmore accurately in pressure and flow rate control

  • Reserves an internet management systen and energy consumpition display which enables advantanced control modes.

CLAMPING SYSTEM

  • SK Series adopts outwards toggle and excellent design ideal . with quite large bar space between four column. Which is required by different industries.

  • Super large open stroke is 10%-20% bigger than normal one.  More suitable for deep cavity product

  • QT500-7 Mold board is much strong for long time service .

  • Adopting gear-adjusting ring with high-precision, large-scale transfer and compact structure to facilitate customer adjusting the mold thickness
International  Components
