SK530 PET Servo Motor Injection Molding Machine

SK530 PET Servo Motor Injection Molding Machine
SK530 PET Servo Motor Injection Molding Machine
SK530 PET Servo Motor Injection Molding Machine
SK530 PET Servo Motor Injection Molding Machine
SK530 PET Servo Motor Injection Molding Machine
Central Locking Structure; With 530T Make 580T Product
Barspace: 860x800mm Open: 880 mm
Automate production, improve productivity, meet your production capacity!
20%-80% energy saving than ordinary injection molding machines
Higher product yield and fewer burrs, reducing your workload
Larger space between tie-bars, suitable for larger molds and multi-cavity needs
Higher repeatability precision improves product quality and mold lifespan.
Adopt advanced ejector structure, larger space, and easy maintenance.
Request a Quote
Description

Sunbun is the world's leading supplier of pet injection molding machines and one of the best injection molding machine manufacturers in China.

Compared with other injection molding machines, our 530ton pet injection molding machine has lower machine loss, higher efficiency and better output. We have our own factory and can sell at the lowest ex-factory price. If you are interested in our 530tons pet plastic injection molding machine, please contact us!



530Ton Injection Molding Machines Specification




Injection Part
Item/type Unit SK530 PET / C3100
Screw diameter mm 80
Screw diame-ter ratio L/D 24
Theoretical injection volume cm³  2085
Injection volume (PET) g 2502
Maximum rate for inject-ion to air cm³/s 513
Injection pressure MPa 145
Injection stroke mm 415
Maximum injection speed mm/s 102
Maximal Rotational Speed of Screw r/min 0-159



Clamping Part
Item/type Unit SK530 PET / C3100
Clamp Tonnage KN 5300
Toggle stroke mm 880
Distance between tie bars mm×mm 860x800
Maximum mould height mm 820
Minimum mould height mm 350
Ejection stroke mm 210
Ejector force forward KN 113
Ejector force backard KN 82
Amount of die thimble Pcs 1+12



Others
Item/type Unit SK530 PET / C3100
Motor power KW 30+22
Heater power KW 31.8
Quantity of temperature-control zones   1+5
Bucket capacity kg 100
Oil tank capacity L 750
Boundary dimension(L×W×H) m 8.1x2.2x2.6
Machine weight Ton 21



Features of 530Ton PET Injection Molding Machine


Injection System

  • The enhanced double-cylinder dual-extruding enjection structure will produce a lower back pressure in oil return during ejection. have a quicker injection speed and longer service life
  • The dual linear-guide , double displacement balanced stand can improve machine barrel accuracy
  • Precise screw design will dramatically improve the injection accuracy and effectively reduce the defective rate.  (38/42 Crmoal)
  • The optioncal pneumatic nozzle imported with orginal package has a flexible switch device and reliable seal
  • The cylinder with thicker wall and a high power heater can ensure a high plasticizing efficiency





Hydraulic System

  • With international High Speed Storage motor and Hydraulic Components ensure fast , effcient and long life operation
  • Modualr design for High-Response oil circult and hydraulic valve plate Which have a large oil circule and free of damp effectively reduce pressure loss , speed up system response ability
  • Original germany oil pipe and seals avoid oil leak.

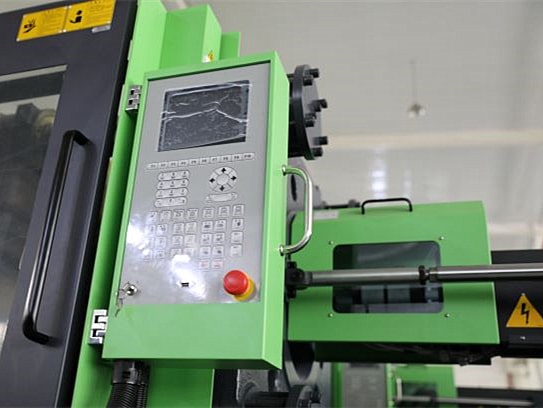

Electronic Control

  • The whole electrionic control system is design for full electric and high speed injection molding machine
  • Apply Up-To-Date System,  New hardware design,  intelligent interactive interface ,  A CPU for fast arithmetic speed
  • Using EtherCAT/CAN  All-Date Communication technology Show clear iprovement in all technical indexes. Actsmore accurately in pressure and flow rate control
  • Reserves an internet management systen and energy consumpition display which enables advantanced control modes.





Clamping System

  • SK Series adopts outwards toggle and excellent design ideal . with quite large bar space between four column. Which is required by different industries.
  • Super large open stroke is 10%-20% bigger than normal one.  More suitable for deep cavity product
  • QT500-7 Mold board is much strong for long time service .
  • Adopting gear-adjusting ring with high-precision, large-scale transfer and compact structure to facilitate customer adjusting the mold thickness





Main Applications of Our PET Injection Molding Machines


Main Applications of Our Servo Injection Molding Machines

If you have any query about our injection molding machine, just contact me at any time
