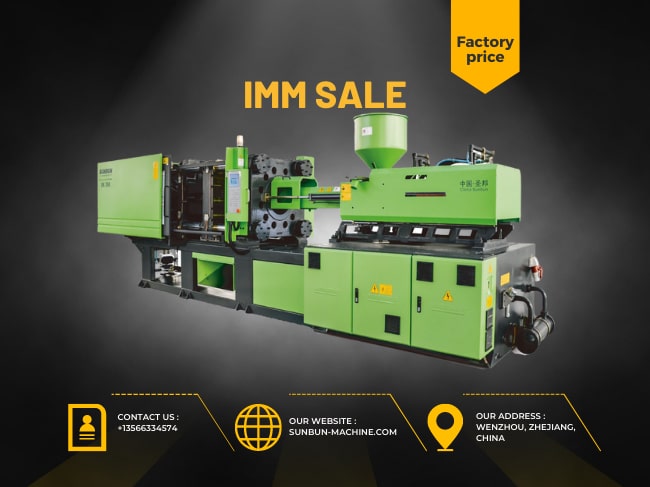

SK 230T Bucket Cap Making Injection Molding Machine

SK 230T Bucket Cap Making Injection Molding Machine
SK 230T Bucket Cap Making Injection Molding Machine
SK 230T Bucket Cap Making Injection Molding Machine
SK 230T Bucket Cap Making Injection Molding Machine
SK 230T Bucket Cap Making Injection Molding Machine
Central Locking Structure;With 230T Make 268T Product
Barspace: 580x530 mm Open: 550 mm
Automate production, improve productivity, meet your production capacity!
20%-80% energy saving than ordinary injection molding machines
Higher product yield and fewer burrs, reducing your workload
Larger space between tie-bars, suitable for larger molds and multi-cavity needs
Higher repeatability precision improves product quality and mold lifespan.
Adopt advanced ejector structure, larger space, and easy maintenance.
Request a Quote
Description

    SK series. From 140T-2800T as the lastest generation injection molding machine of SUNBUN group featuring the mechanical Central Locking Structure. Different with 99.9% injection machine among the market



    With 100% clamping force and longer open stroke which can be use smaller machine make bigger products. Material saving 2%-6% than normal machine enjoy solid reputation from all the clients.


Sunbun, Your best high speed high precision injection molding machine.

● 100% Clamping Force Ratio, 10%-20% Higher Than Tradtional One


● Less Fins On The Finished Products


● 2%-6% Raw Material Saved From Tradtional One


● Effective Production For Mold, Mold Board and Pull Rod


Open Stroke 10%-20% Bigger Than Morlam One


● Less Deformation By CoolIng


Injection part
Item/type Unit SK230 / C760
Screw type   A B C
Screw diameter mm 45 50 55
Screw diame-ter ratio L/D 22 22 20
Theoretical injection volume cm³ 381 471 570
Injection volume (PS) g 347 428 519
Maximum rate for inject-ion to air cm³/s 167 207 250
Injection pressure MPa 199 161 133
Injection stroke mm 240
Maximum injection speed mm/s 111
Maximal Rotational Speed of Screw r/min 221
Clamping part
Item/type Unit SK230 / C760
Clamp Tonnage KN 2300
Toggle stroke mm 550
Distance between tie bars mm×mm  580x530
Maximum mould height mm 560
Minimum mould height mm 220
Ejection stroke mm 160
Ejector force forward KN 70
Ejector force backard KN 45
Amount of die thimble Pcs 1+12
Others
Item/type Unit SK230 / C760
System pressure MPa 16
Motor power KW 22
Heater power KW 12.65/14.25
Quantity of temperature-control zones   1+4
Bucket capacity kg 50
Oil tank capacity L 290
Boundary dimension(L×W×H) m 5.9x1.6x2.1
Machine weight Ton 7.2
