SK350 PVC Servo Motor Injection Molding Machine

Central Locking Structure; With 350T Make 400T Product

Barspace: 713x660 mm Open: 700 mm

Automate production, improve productivity, meet your production capacity!

20%-80% energy saving than ordinary injection molding machines

Higher product yield and fewer burrs, reducing your workload

Larger space between tie-bars, suitable for larger molds and multi-cavity needs

Higher repeatability precision improves product quality and mold lifespan.

Adopt advanced ejector structure, larger space, and easy maintenance.

Request a Quote

Description

Sunbun is the market leader of PVC injection molding machines and one of the best injection molding machine suppliers in China.

The pvc forming machines offered by Sunbun are widely sought in various industries. Our injection molding machines are simple to operate, easy to follow and low maintenance. If you need 350 tons pvc injection molding machine, then please contact us. We will give a reasonable price!

350 Ton Injection Molding Machines Specification

Injection Part
Item/type	Unit	SK350 PVC / C1900
Screw diameter	mm	70
Screw diame-ter ratio	L/D	21.5
Theoretical injection volume	cm³	1250
Injection volume (PVC)	g	1625
Maximum rate for inject-ion to air	cm³/s	437
Injection pressure	MPa	152
Injection stroke	mm	325
Maximum injection speed	mm/s	115
Maximal Rotational Speed of Screw	r/min	0-227
Screw Cooling Fan	pcs	4
Hydraulic Motor	Type	470T pne

Clamping Part
Item/type	Unit	SK350 PVC / C1900
Clamp Tonnage	KN	3500
Toggle stroke	mm	700
Distance between tie bars	mm×mm	713x660
Maximum mould height	mm	730
Minimum mould height	mm	330
Ejection stroke	mm	190
Ejector force forward	KN	113
Ejector force backard	KN	82
Amount of die thimble	Pcs	1+12

Others
Item/type	Unit	SK350 PVC / C1900
Motor power	KW	45
Heater power	KW	24.95
Quantity of temperature-control zones		1+5
Bucket capacity	kg	50
Oil tank capacity	L	520
Boundary dimension(L×W×H)	m	7.1x1.75x2.2
Machine weight	Ton	13

Features of 350Ton PVC Injection Molding Machine

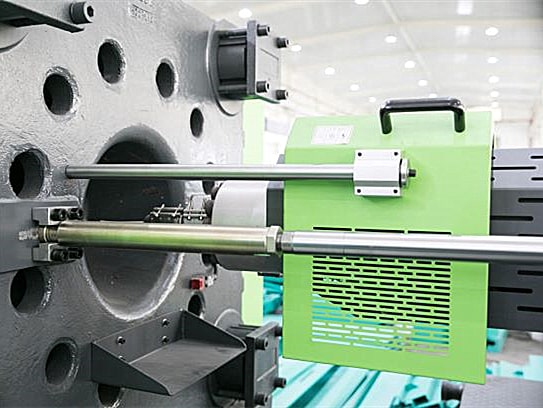

Injection System

The enhanced double-cylinder dual-extruding enjection structure will produce a lower back pressure in oil return during ejection. have a quicker injection speed and longer service life
The dual linear-guide , double displacement balanced stand can improve machine barrel accuracy
Precise screw design will dramatically improve the injection accuracy and effectively reduce the defective rate. (38/42 Crmoal)
The optioncal pneumatic nozzle imported with orginal package has a flexible switch device and reliable seal
The cylinder with thicker wall and a high power heater can ensure a high plasticizing efficiency

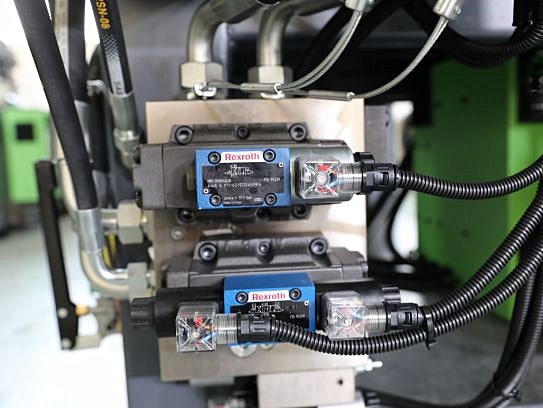

Hydraulic System

With international High Speed Storage motor and Hydraulic Components ensure fast , effcient and long life operation
Modualr design for High-Response oil circult and hydraulic valve plate Which have a large oil circule and free of damp effectively reduce pressure loss , speed up system response ability
Original germany oil pipe and seals avoid oil leak.

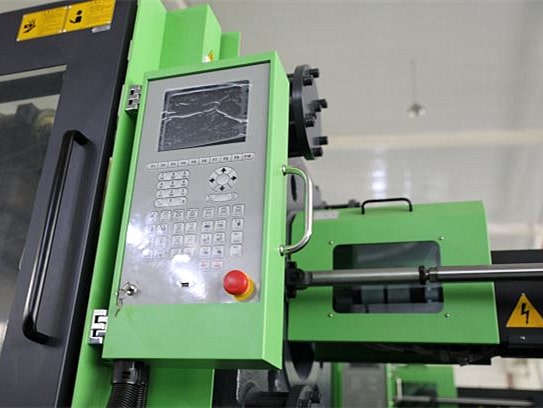

Electronic Control

The whole electrionic control system is design for full electric and high speed injection molding machine
Apply Up-To-Date System, New hardware design, intelligent interactive interface , A CPU for fast arithmetic speed
Using EtherCAT/CAN All-Date Communication technology Show clear iprovement in all technical indexes. Actsmore accurately in pressure and flow rate control
Reserves an internet management systen and energy consumpition display which enables advantanced control modes.

Clamping System

SK Series adopts outwards toggle and excellent design ideal . with quite large bar space between four column. Which is required by different industries.
Super large open stroke is 10%-20% bigger than normal one. More suitable for deep cavity product
QT500-7 Mold board is much strong for long time service .
Adopting gear-adjusting ring with high-precision, large-scale transfer and compact structure to facilitate customer adjusting the mold thickness
