SK 280T Servo Motor Injection Molding Machine

SK 280T Servo Motor Injection Molding Machine
SK 280T Servo Motor Injection Molding Machine
SK 280T Servo Motor Injection Molding Machine
SK 280T Servo Motor Injection Molding Machine
SK 280T Servo Motor Injection Molding Machine
Factory direct sales, better price
Barspace: 660x610 Open:615
SK series. From 140T-2800T as the lastest generation injection molding machine of SUNBUN group featuring the mechanical Central Locking Structure. Different with 99.9% injection machine among the market
Automate production, improve productivity, meet your production capacity!
20%-80% energy saving than ordinary injection molding machines
Higher product yield and fewer burrs, reducing your workload
Larger space between tie-bars, suitable for larger molds and multi-cavity needs
Higher repeatability precision improves product quality and mold lifespan.
Adopt advanced ejector structure, larger space, and easy maintenance.
Request a Quote
Description

Sunbun is the world's leading supplier of servo injection molding machines and one of the best injection molding machine manufacturers in China.

Compared with other injection molding machines, our 280-ton servo injection molding machine has lower machine loss, higher efficiency, and better yield. We have our own factory and can sell at the lowest factory price. If you are interested in our 280 ton servo injection molding machine, please contact us!



280 Ton Injection Molding Machines Specification




Injection Part
Item/type Unit SK280 / C1200
Screw type   A B C D
Screw diameter mm 50 55 60 65
Screw diame-ter ratio L/D 23 21 22 20
Theoretical injection volume cm³ 538 650 774 909
Injection volume (PVC) g 490 592 704 827
Maximum rate for inject-ion to air cm³/s 190 230 274 322
Injection pressure MPa 23 184 155 132
Injection stroke mm 274
Maximum injection speed mm/s 97
Maximal Rotational Speed of Screw r/min 178



Clamping Part
Item/type Unit SK280 / C1200
Clamp Tonnage KN 2800
Toggle stroke mm 615
Distance between tie bars mm×mm 660x610
Maximum mould height mm 620
Minimum mould height mm 240
Ejection stroke mm 180
Ejector force forward KN 70
Ejector force backard KN 45
Amount of die thimble Pcs 1+12



Others
Item/type Unit SK280 / C1200
System pressure MPa 16
Motor power KW 30
Heater power KW 17.25/18.55
Quantity of temperature-control zones   1+4
Bucket capacity kg 50
Oil tank capacity L 350
Boundary dimension(L×W×H) m 6.4x1.6x2.1
Machine weight Ton 9.3



Features of 280 Ton Servo Injection Molding Machine


Injection System

  • The enhanced double-cylinder dual-extruding enjection structure will produce a lower back pressure in oil return during ejection. have a quicker injection speed and longer service life
  • The dual linear-guide , double displacement balanced stand can improve machine barrel accuracy
  • Precise screw design will dramatically improve the injection accuracy and effectively reduce the defective rate.  (38/42 Crmoal)
  • The optioncal pneumatic nozzle imported with orginal package has a flexible switch device and reliable seal
  • The cylinder with thicker wall and a high power heater can ensure a high plasticizing efficiency

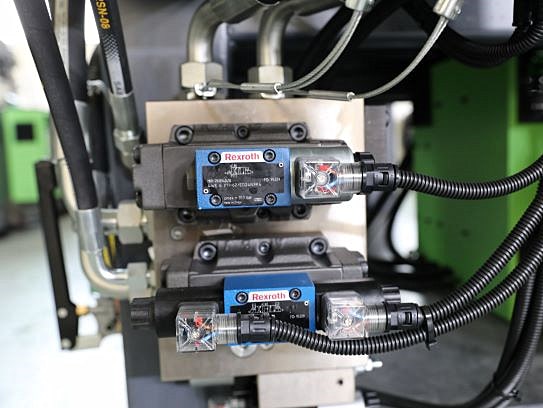

Hydraulic System

  • With international High Speed Storage motor and Hydraulic Components ensure fast , effcient and long life operation
  • Modualr design for High-Response oil circult and hydraulic valve plate Which have a large oil circule and free of damp effectively reduce pressure loss , speed up system response ability
  • Original germany oil pipe and seals avoid oil leak.





Electronic Control

  • The whole electrionic control system is design for full electric and high speed injection molding machine
  • Apply Up-To-Date System,  New hardware design,  intelligent interactive interface ,  A CPU for fast arithmetic speed
  • Using EtherCAT/CAN  All-Date Communication technology Show clear iprovement in all technical indexes. Actsmore accurately in pressure and flow rate control
  • Reserves an internet management systen and energy consumpition display which enables advantanced control modes.





Clamping System

  • SK Series adopts outwards toggle and excellent design ideal . with quite large bar space between four column. Which is required by different industries.
  • Super large open stroke is 10%-20% bigger than normal one.  More suitable for deep cavity product
  • QT500-7 Mold board is much strong for long time service .
  • Adopting gear-adjusting ring with high-precision, large-scale transfer and compact structure to facilitate customer adjusting the mold thickness





Main Applications of Our Servo Injection Molding Machines
